Container Specifications
| INTERNAL DIMENSIONS | DOOR | CUBIC CAPACITY | MAX. PAYLOAD | |||
|---|---|---|---|---|---|---|
| L | W | H | W | H | ||

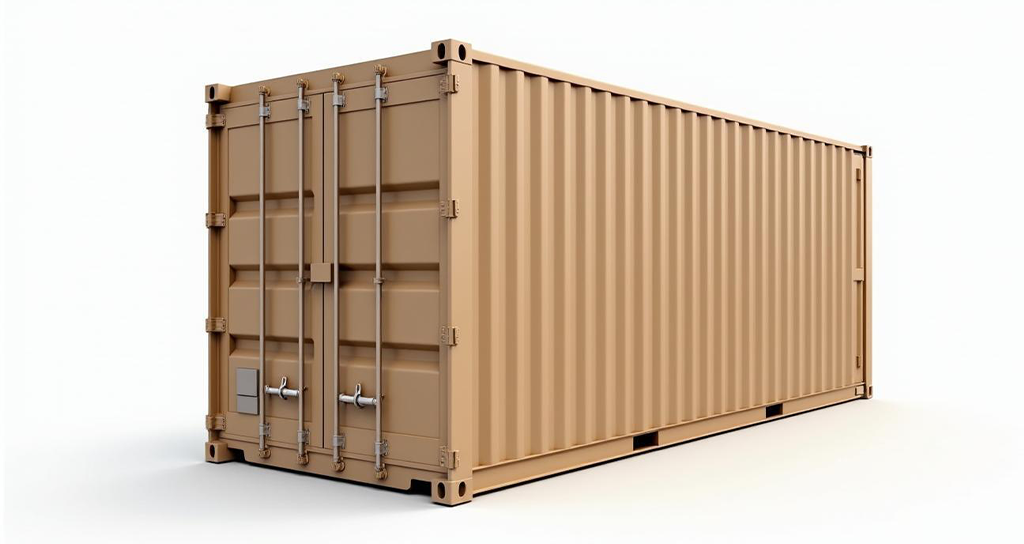

| 20’ STANDARD | ||||||
| 5.9 m 19' 4" |
2.35 m 7' 8" |
2.39 m 7' 10" |
2.34 m 7' 8" |
2.28 m 7' 6" |
33.20 m³ 1,170 cft |
28,260 kg 62,310 lbs |
| INTERNAL DIMENSIONS | DOOR | CUBIC CAPACITY | MAX. PAYLOAD | |||
|---|---|---|---|---|---|---|
| L | W | H | W | H | ||

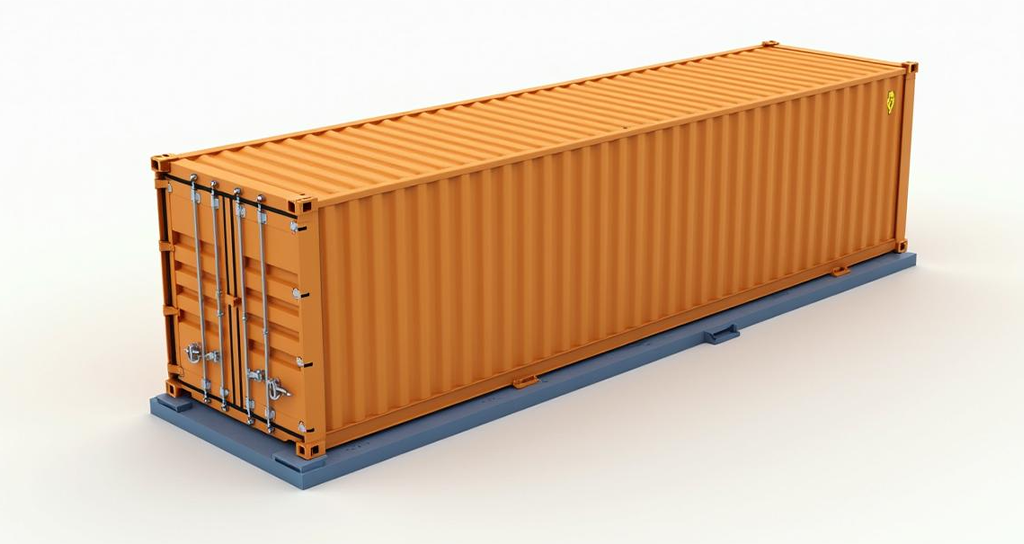

| 40’ STANDARD | ||||||
| 12.03 m 39' 6" |
2.35 m 7' 9" |
2.39 m 7' 10" |
2.34 m 7' 8" |
2.28 m 7' 6" |
67.70 m³ 2,391 cft |
28,860 kg 63,620 lbs |
| 40’ HIGH CUBE | ||||||
| 12.03 m 39' 6" |
2.35 m 7' 9" |
2.70 m 8' 10" |
2.34 m 7' 8" |
2.58 m 8' 6" |
76.4 m³ 2,700 cft |
28,660 kg 63,180 lbs |
| INTERNAL DIMENSIONS | ROOF | CUBIC CAPACITY | MAX. PAYLOAD | |||
|---|---|---|---|---|---|---|
| L | W | H | L | W | ||
| 20’ OPEN TOP | ||||||
| 5.9 m 19' 4" |
2.35 m 7' 8" |
2.35 m 7' 10" |
5.38 m 17' 7" |
2.25 m 7' 4" |
33.23 m³ 1,170 cft |
28,180 kg 62,310 lbs |
| INTERNAL DIMENSIONS | ROOF | CUBIC CAPACITY | MAX. PAYLOAD | |||
|---|---|---|---|---|---|---|
| L | W | H | L | W | ||

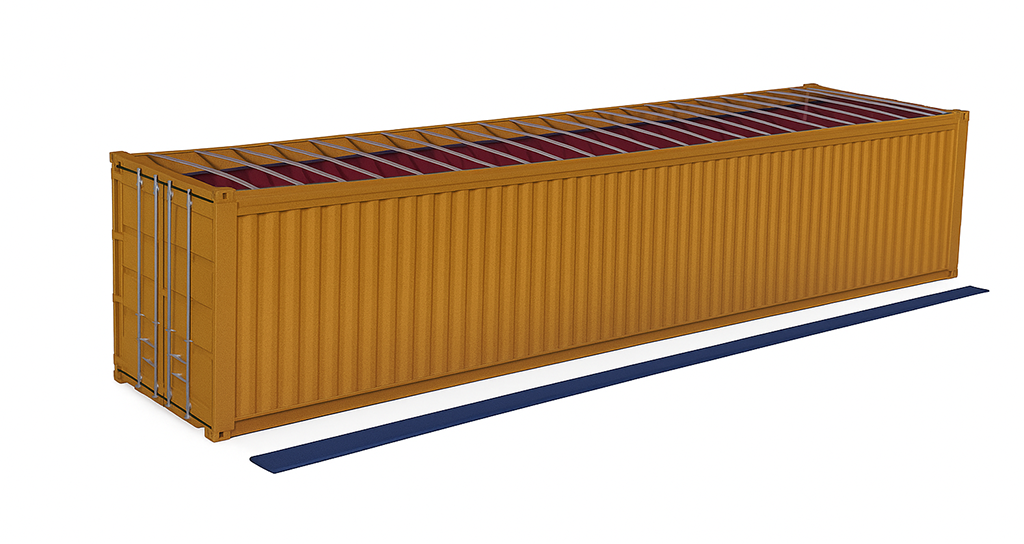

| 40’ OPEN TOP | ||||||
| 12.03 m 39' 6" |
2.35 m 7' 9" |
2.39 m 7' 8" |
11.51 m 37' 9" |
2.23 m 7' 4" |
66.50 m³ 2,348 cft |
26,680 kg 58,819 lbs |
| INTERNAL DIMENSIONS | BETWEEN HEADERS | BETWEEN CORNERS | MAX. PAYLOAD | |||
|---|---|---|---|---|---|---|
| L | W | H | L | L | W | |

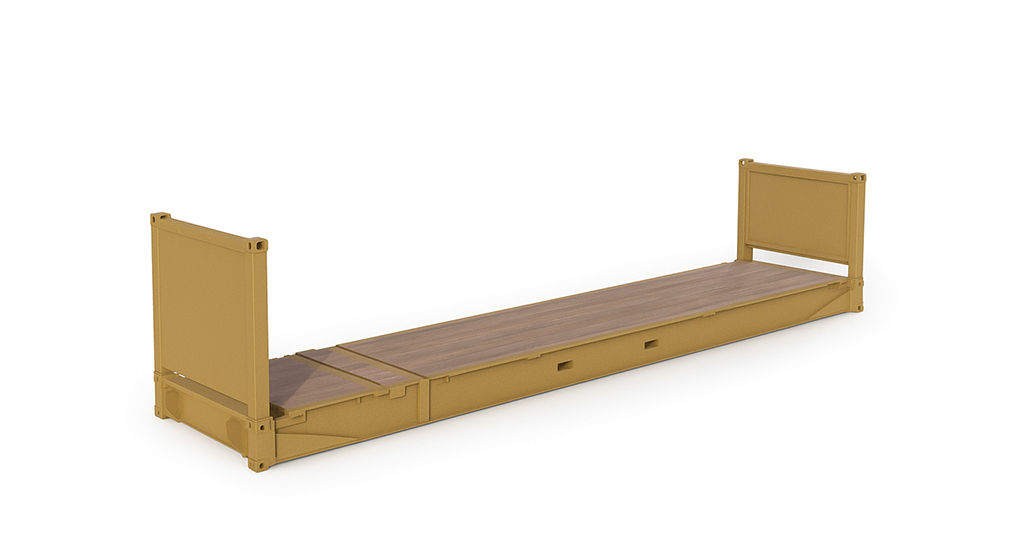

| 20’ COLLAPSIBLE FLAT RACK | ||||||
| 5.96m 19' 7" |
2.4m 7' 10" |
2.29m 7' 6" |
5.85m 19' 2" |
5.42m 17' 9" |
2.06m 6' 9" |
37,000 kg 81,580 lbs |
| INTERNAL DIMENSIONS | BETWEEN HEADERS | BETWEEN CORNERS | MAX. PAYLOAD | |||
|---|---|---|---|---|---|---|
| L | W | H | L | L | W | |
| 40’ COLLAPSIBLE FLAT RACK | ||||||
| 11.65 m 38' 3" |
2.35m 7' 9" |
1.96m 6' 5" |
12.06 m 39' 7" |
11.66 m 38' 3" |
2.22m 7' 3" |
44,650 kg 98,436 lbs |
| INTERNAL DIMENSIONS | DOOR | CUBIC CAPACITY | MAX. PAYLOAD | |||
|---|---|---|---|---|---|---|
| L | W | H | W | H | ||

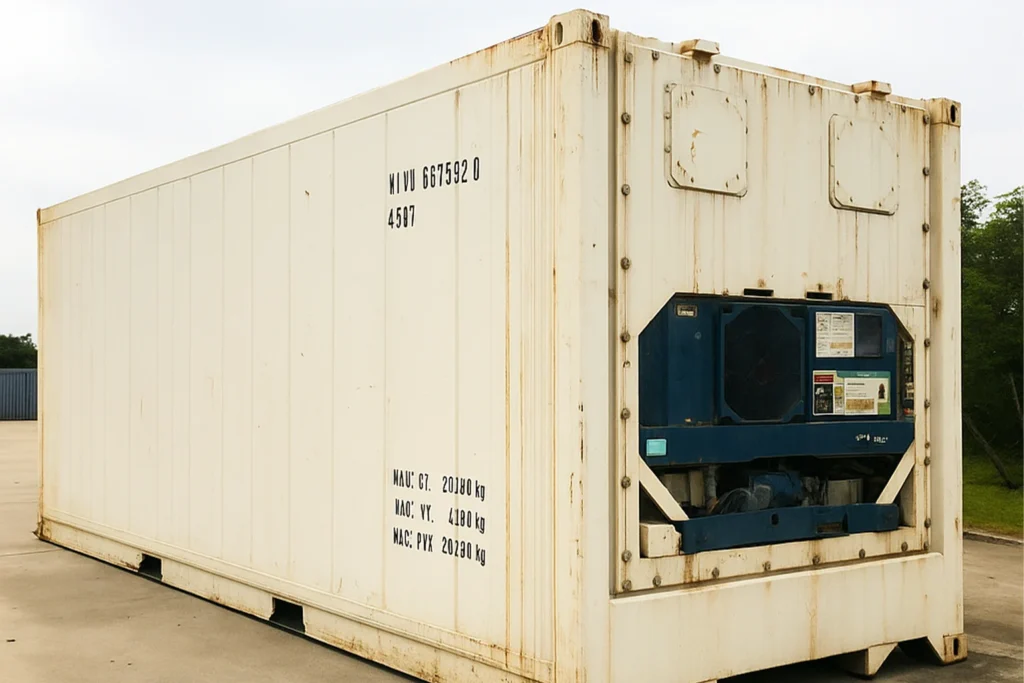

| 20’ REEFER | ||||||
| 5.45m 17' 10" |
2.29m 7' 6" |
2.16m 7' 1" |
2.29m 7' 6" |
2.26m 7' 5" |
28.30 m³ 999 cft |
27,540 kg 60,720 lbs |
| INTERNAL DIMENSIONS | DOOR | CUBIC CAPACITY | MAX. PAYLOAD | |||
|---|---|---|---|---|---|---|
| L | W | H | W | H | ||

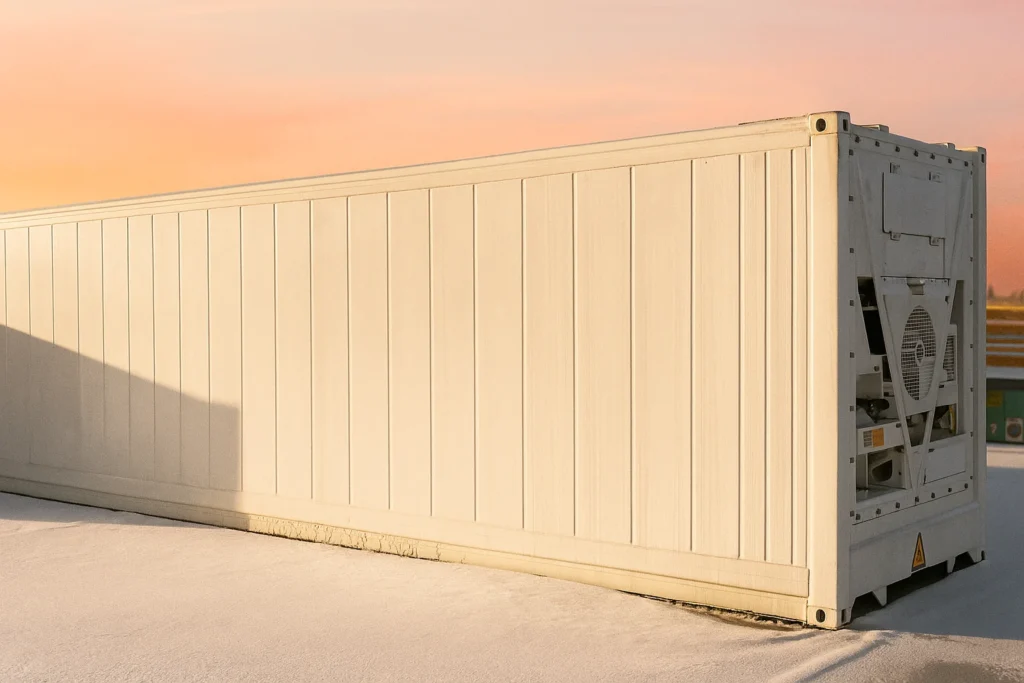

| 40’ REEFER | ||||||
| 11.59m 38' |
2.29m 7' 6" |
2.40m 7' 10" |
2.29m 7' 6" |
2.57m 8' 5" |
67.90 m³ 2,397 cft |
30,260 kg 66,712 lbs |
